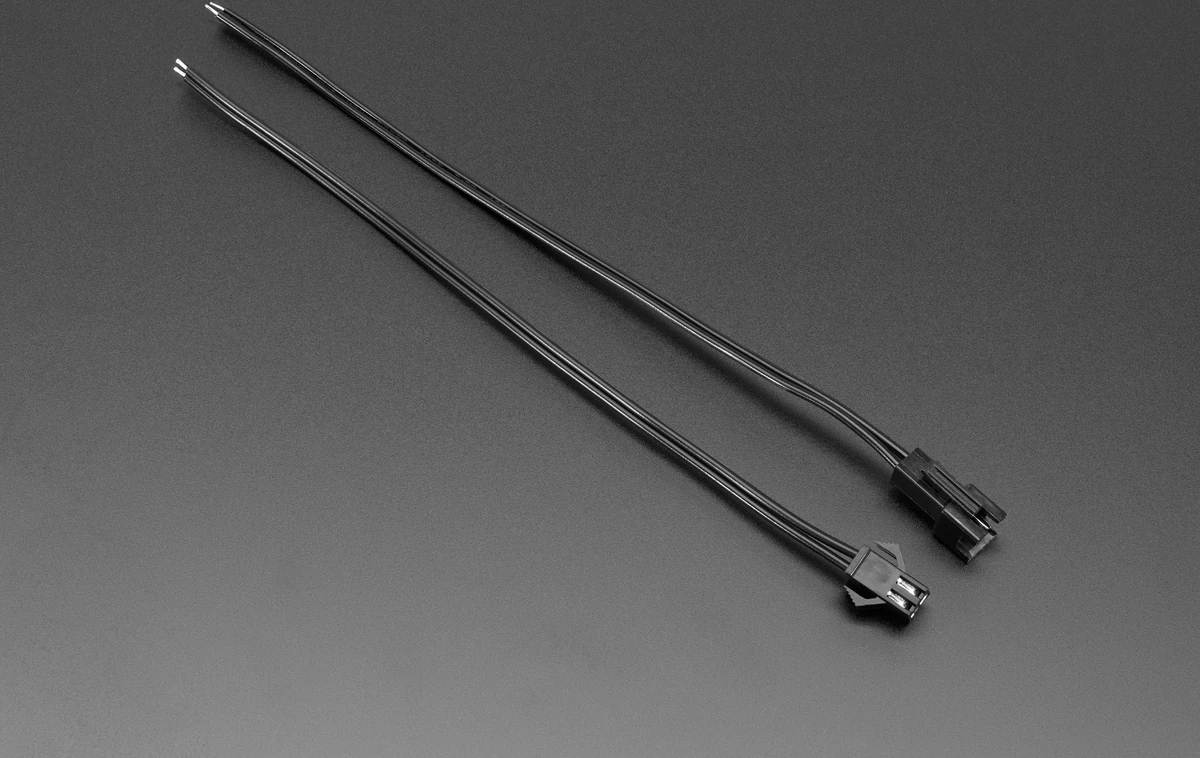

SM

Details

creator

JST

notes

Most popular LED strip connector seen

board fingers

No

colors

White, Black

contact type

Pins

convention

Female source (shrouded male on LEDs)

crimp

Yes

gendered

Yes

idc

No

ip rating

-

largest gauge

-

locking

Latching

max current

3 A

max pins

-

max voltage

250 V

min pins

2

outline

Rectangular

panel mount

Yes

pcb mount

No

pinout

G D [C] V

pitch

2.54 mm

rows

1

screw terminal

-

smallest gauge

-

solder

Yes

wire to wire

Yes

year introduced

-
